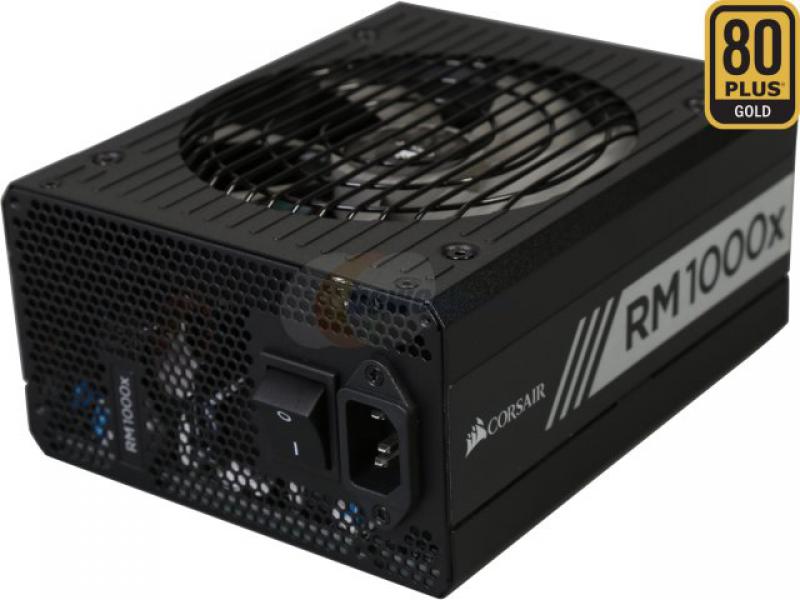

CORSAIR RM1000X 1000W 80 PLUS GOLD Full Modular

Model

Brand

CORSAIR

Model

RM1000X (CP-9020094-NA )

Series

RMx Series

Details

Type

ATX12V / EPS12V

Maximum Power

1000W

Fans

1 x 135mm Rifle bearing fan

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

8 x 6+2-Pin

SATA Power Connector

11

SLI

SLI Ready

Haswell Support

Yes

CrossFire

CrossFire Ready

Modular

Full Modular

Energy-Efficient

80 PLUS GOLD Certified

Input Voltage

100 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

13A - 6.5A

Output

+3.3V@25A, +5V@25A, +12V@83.3A, -12V@0.8A, +5VSB@3A

MTBF

100,000 hours

Approvals

FCC, CE, UL, CUL, RCM, TUV, CB, CCC, BSMI, CU-TR, RoHS, WEEE, RoHS (China), KC

Dimensions

3.39" x 5.91" x 7.09"

Weight

4.41 lbs.

Features

Connectors

1 x Motherboard cable (20+4-Pin)
2 x CPU power Cable( 4+4-Pin, works as either 4 or 8-Pin)
8 x PCIe 6+2-Pin (GPU)
11 x 4-Pin peripheral cable
12 x SATA cable
2 x Floppy power adapter cable

Features

80 PLUS Gold efficiency, delivering 90% energy efficiency at real world load conditions.

ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.

135mm thermally controlled fan spins up as needed.

Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis.

Engineered to meet maximum power output at a server-grade 50 degree C temperature rating.

Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
