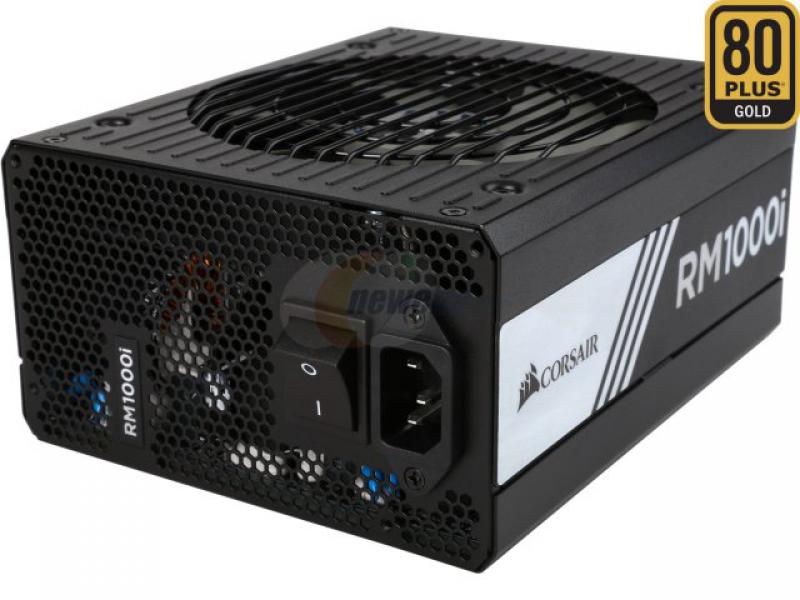

CORSAIR RM1000i 1000W 80 PLUS GOLD Full Modular

Model

Brand

CORSAIR

Model

RM1000i

Details

Type

ATX12V / EPS12V

Maximum Power

1000W

Fans

1

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

8 x 6+2-Pin

SATA Power Connector

12

SLI

SLI Ready

Haswell Support

Yes

CrossFire

CrossFire Ready

Modular

Full Modular

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

13A - 6.5A

Output

+3.3V@25A, +5V@25A, +12V@83.3A, -12V@0.8A, +5VSB@3A

MTBF

>100,000 Hours

Approvals

FCC, ICES, CE, C TUV US, RCM, TUV, CB, CCC, BSMI, GOST, ROHS, WEEE, ROHS, KC, TUV-S

Dimensions

3.39" x 5.91" x 6.30"

Weight

4.41 lbs.

Features

Connectors

ATX Connector 1
EPS Connector 2
Floppy Connector 2
4-Pin Peripheral Connector 11
PCI-E Connector 8
SATA Connector 12

Features

135mm thermally controlled fluid dynamic bearing fan.

Engineered to meet maximum power output at a server-grade 50C temperature rating.

The latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems.

4th generation Intel® Core™ processor Ready (Intel Haswell and Z87 motherboards).

Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.

Safety and Agency Approvals: FCC, ICES, CE, CUL, TUV, RCM, EAC, C TUV-US, RCM, TUV, CB, CCC, CU TR, RoHS, WEEE, RoHS (China).
