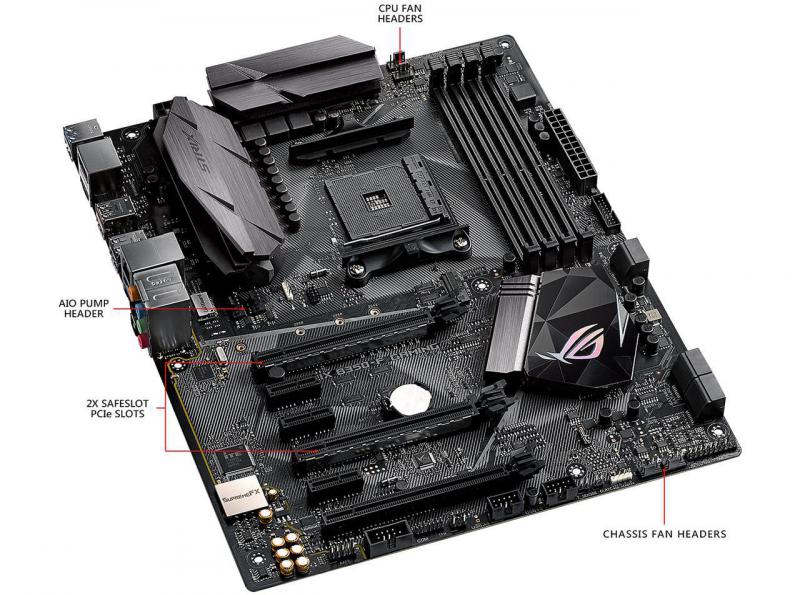

ASUS ROG STRIX B350-F GAMING AM4
Hãng sản xuất:
Mã sản phẩm:
STRIX B350-F GAMING
Xuất xứ:
Taiwan
Bảo hành:
36 tháng
Kho hàng:
Sẵn hàng
Giá:
3.350.000 VNĐ
Chi tiết sản phẩm
Model
Brand
ASUS
Series
ROG
Model
STRIX B350-F GAMING
Supported CPU
CPU Socket Type
AM4
CPU Type
Ryzen / Athlon / A-Series
Chipsets
Chipset
AMD B350
Memory
Number of Memory Slots
4×288pin
Memory Standard
Ryzen Processors: DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133 *
7th Generation A-series/Athlon Processors: DDR4 2400/ 2133 *
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
Ryzen Processors:
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
7th Generation A-series/Athlon Processors:
1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16
1 x PCIe 2.0 x16 (max at x4 mode) *1
*1 PCIEX16_3 Socket shares bandwidth witch PCIEX1_1 and PCIEX1_3
PCI Express x1
3 x PCIe 2.0 x1
Storage Devices
SATA 6Gb/s
AMD Ryzen Processors:
2 x SATA 6Gb/s port(s)
AMD B350 chipset:
4 x SATA 6Gb/s port(s)
M.2
Ryzen Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode) *5
7th Generation A-series/Athlon Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x2 mode) *6
*5 When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
*6 When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048MB
Onboard Audio
Audio Chipset
ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel i211AT
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
HDMI
1 x HDMI
RJ45
1 x RJ45
DisplayPort
1 x DisplayPort
USB 3.1
2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1
USB 1.1/2.0
2 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
2 x RGB Header(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
Features
Features
Multi-GPU Support:
Supports AMD 3-Way CrossFireX Technology
ROG Exclusive Features:
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
Special Features:
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages
TPU:
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU:
- EPU
AURA:
- Aura Lighting Control
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics:
- AURA-RGB Lighting
Digi+VRM
BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System:
Windows 10 64-bit
Packaging
Package Contents
Accessories:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80cm)
1 x ROG coaster(s)
