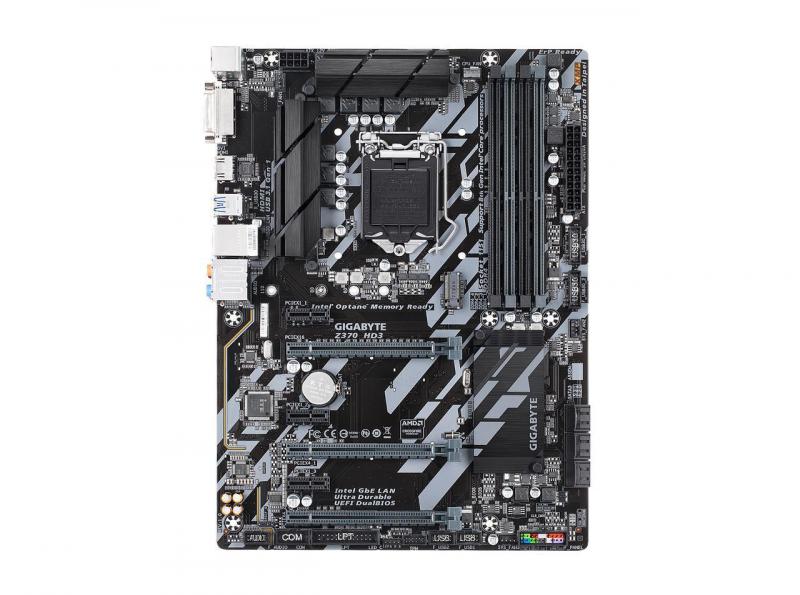

GIGABYTE Z370 HD3 LGA 1151 (300 Series)
Hãng sản xuất:
Gigabyte
Mã sản phẩm:
Z370 HD3
Xuất xứ:
Taiwan
Bảo hành:
36 tháng
Kho hàng:
Sẵn hàng
Giá:
3.700.000 VNĐ
Chi tiết sản phẩm
Model
Brand
GIGABYTE
Model
Z370 HD3 (rev. 1.0)
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Only Support for 8th Generation Intel Core i7 / i5 / i3 processors in the LGA1151 package
* Not backward compatible with older generation of LGA 1151 CPUs
Chipsets
Chipset
Intel Z370
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor-Intel HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1GB
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
PCI Express x1
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
2/4/5.1/7.1-channel
Onboard LAN
LAN Chipset
Intel GbE LAN chip
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x DVI-D port
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
4 x USB 3.1 Gen 1 ports
USB 1.1/2.0
2 x USB 2.0
Audio Ports
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Internal I/O Connectors
Onboard USB
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x parallel port header
1 x serial port header
1 x Clear CMOS jumper
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.01" x 8.86"
Power Pin
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features
Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software:
Norton Internet Security (OEM version)
cFosSpeed
Operating System:
Support for Windows 10 64-bit
