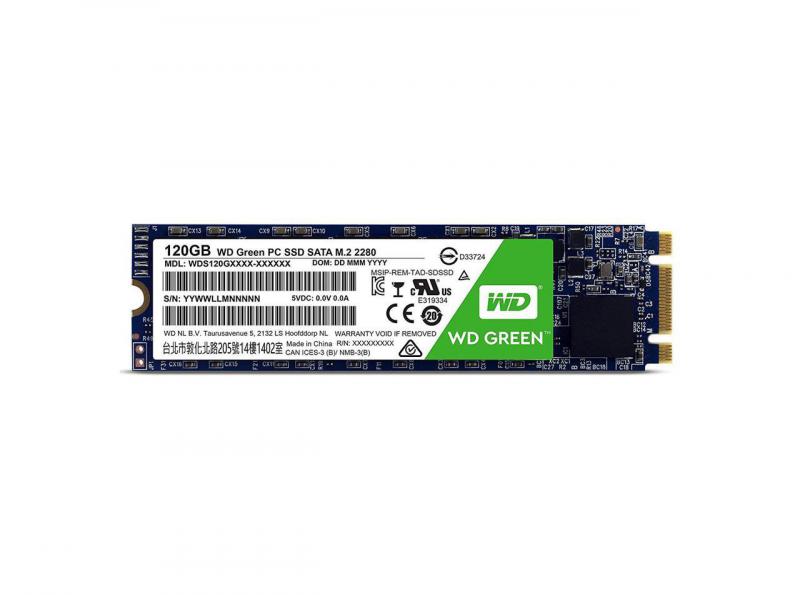

WD Green 120GB M.2 2280 Solid State Drive

Model

Brand

Western Digital

Series

Green

Model

WDS120G2G0B

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Details

Form Factor

M.2 2280

Capacity

120GB

Interface

SATA III

Performance

Max Sequential Read

Up to 540 MBps

Max Sequential Write

Up to 430 MBps

4KB Random Read

Up to 37,000 IOPS

4KB Random Write

Up to 63,000 IOPS

MTTF

Up to 1.75M hours

Environmental

Power Consumption (Idle)

30 mW (Slumber)
3 mW (DEVSLP)

Power Consumption (Active)

50 mW (Avg. Active Power)
2,000 mW (Max Read Operating)
2,000 mW (Max Write Operating)

Operating Temperature

0°C ~ +70°C

Storage Temperature

-55°C ~ +85°C

Max Shock Resistance

1500G

Max Vibration Resistance

Operating: 5.0 gRMS, 10-2000 Hz
Non-operating: 4.9 gRMS, 7-800 Hz

Dimensions & Weight

Height

1.50mm

Width

22.00mm

Depth

80.00mm

Weight

6.46g
