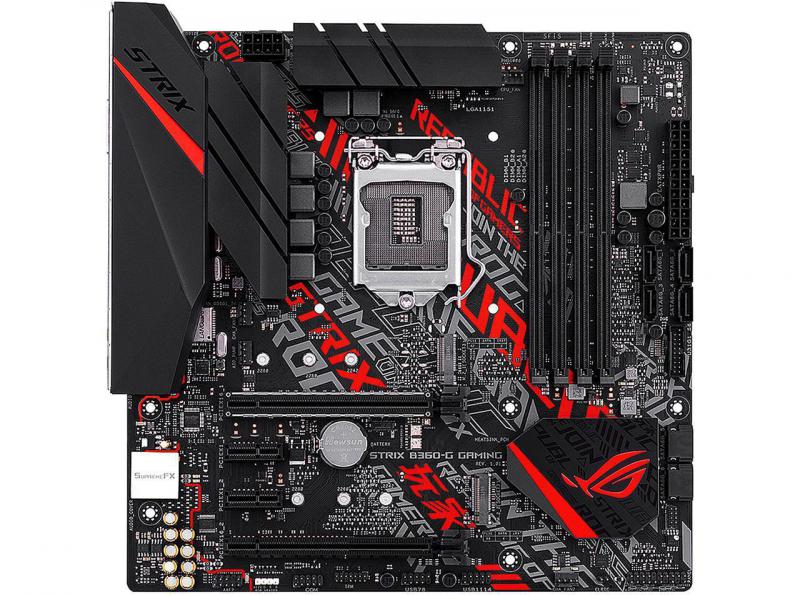

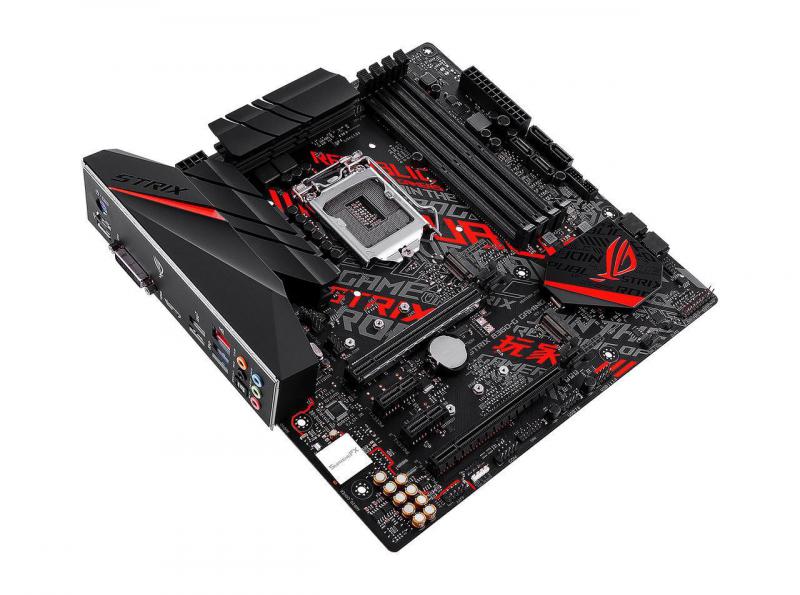

ASUS ROG STRIX B360-G GAMING LGA1151 (300 Series)

Model

Brand

ASUS

Series

ROG

Model

STRIX B360-G GAMING

Supported CPU

CPU Socket Type

LGA 1151 (300 Series)

CPU Type

8th generation Intel Core processors
* Not backward compatible with older generation of LGA 1151 CPUs

Supported CPU Technologies

Turbo Boost Technology 2.0
* Intel Turbo Boost Technology 2.0 support depends on the CPU types

Chipsets

Chipset

Intel B360

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DVI ports
- Supports DVI with max. resolution 1920 x 1200 @ 60Hz
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30Hz
Maximum shared memory of 1024MB

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 2666/ 2400/ 2133
* Due to Intel chipset limitation, DDR4 2666MHz memory frequency is only supported by 8th Generation Intel 6-core processors. Higher memory modules will run at the maximum transfer rate of DDR4 2666MHz.

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCIe 3.0 x16 Safeslot
1 x PCIe 3.0 x16 slot (max. at x4 mode)

PCI Express x1

2 x PCIe 3.0 x1 slots

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 modes)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)

Onboard Audio

Audio Chipset

ROG SupremeFX S1220A Codec

Onboard LAN

LAN Chipset

Intel I219-V

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI

HDMI

1 x HDMI 1.4b

RJ45

1 x RJ45

USB 3.1

2 x USB 3.1 Gen 2 ports (2 x Type-A [Red])
2 x USB 3.1 Gen 1 ports

USB 1.1/2.0

2 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

5 x Gold-plated audio jacks

Internal I/O Connectors

Onboard USB

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors

1 x AAFP connector(s)
1 x 4-pin RGB Header(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x AIO_Pump connector(s) (4-pin)
1 x CPU Fan connector(s) (4-pin)
2 x Chassis Fan connector(s) (4-pin)
1 x Clear CMOS jumper(s)
1 x System panel connector(s)

Physical Spec

Form Factor

Micro ATX

LED Lighting

RGB

Dimensions (W x L)

9.6" x 9.6"

Power Pin

1 x 8-pin EATX 12V Power connector(s)
1 x 24-pin EATX Power connector(s)

Features

Features

Multi-GPU Support:
Supports AMD 2-Way CrossFireX Technology

Special Features:
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
GPU Boost
ASUS Exclusive Features:
- AI Suite 3
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- ASUS Aura lighting control
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Pre-mounted I/O Shield
Fan Xpert 4 CORE

BIOS:
1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, ASUS Secure Erase, ASUS User Profile, F4 AURA ON/OFF, F9 Search

Manageability:
WOL, WOR, PXE

Support DVD contents:
Drivers
EZ Update
Anti-virus software (OEM version)
ASUS Utilities

Operating System Support:
Windows 10 64-bit

Packaging

Package Contents

Accessories:
User's manual
1 x (2-in-1) SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix Door Hanger
1 x ROG Strix stickers
1 x CABLE TIE BLACK
