PCI Express 3.0 x16: 1 x PCIe 3.0 x16 slot (PCI_E1)
Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors
Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors

PCI Express 2.0 x16: 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*
* PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.

PCI Express x1: 3 x PCIe 2.0 x1 slots*
* PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.

Storage Devices

SATA 6Gb/s: AMD CPU:
2 x SATA 6Gb/s ports*
AMD B450 Chipset:
4 x SATA 6Gb/s ports

* SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

M.2: 1 x M.2 slot (Key M)*
Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 storage devices
* SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

SATA RAID: 0/1/10

Onboard Video

Onboard Video Chipset: Supported only by CPU with integrated graphic:
1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
Only support when using AMD Ryzen with Radeon Vega Graphics Processors
Maximum shared memory of 2048MB

Onboard Audio

Audio Chipset: Realtek ALC892

Audio Channels: 7.1 Channels

Onboard LAN

LAN Chipset: Realtek 8111H

Max LAN Speed: 10/100/1000Mbps

Rear Panel Ports

PS/2: 1 x PS/2 keyboard/mouse port

Video Ports: 1 x DVI-D

HDMI: 1 x HDMI

RJ45: 1 x RJ45

USB 3.1: AMD B450 Chipset
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port

AMD CPU
2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports

USB 1.1/2.0: 2 x USB 2.0 (High-speed USB) ports (Type-A)

Audio Ports: 6 Ports

Internal I/O Connectors

Onboard USB: 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)

Other Connectors: 1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Serial Port connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors

Physical Spec

Form Factor: ATX

LED Lighting: RGB

Dimensions (W x L): 12.0" x 9.6"

Power Pin: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Features

Features: Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors for Socket AM4

Supports DDR4 Memory, up to 3466(OC) MHz

Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed

Lightning Fast Game experience: 1 x TURBO M.2, AMD Turbo USB 3.1 GEN2, Store MI technology

Core Boost: With premium layout and fully digital power design to support more cores and provide better performance

DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability

MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire

Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience

Mystic Light and Mystic Light Sync: 16.8 million colors / 10 effects in one click. Synchronize RGB strips and other RGB solutions for customization

BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost

EZ Debug LED: Easiest way to troubleshoot

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players

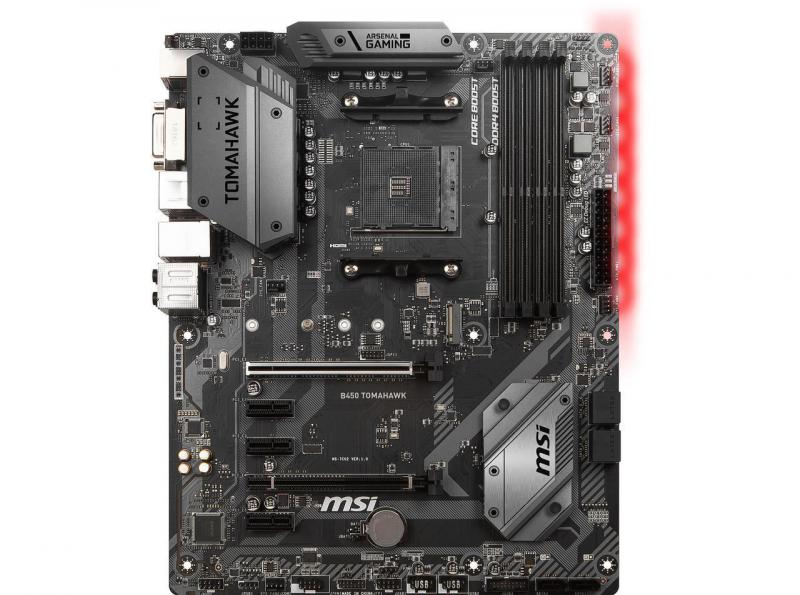

MSI B450 TOMAHAWK AM4
