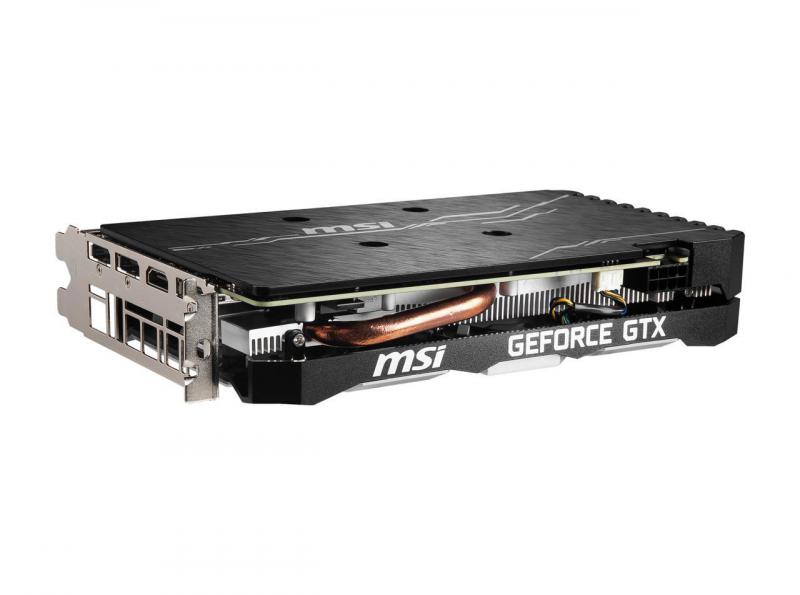

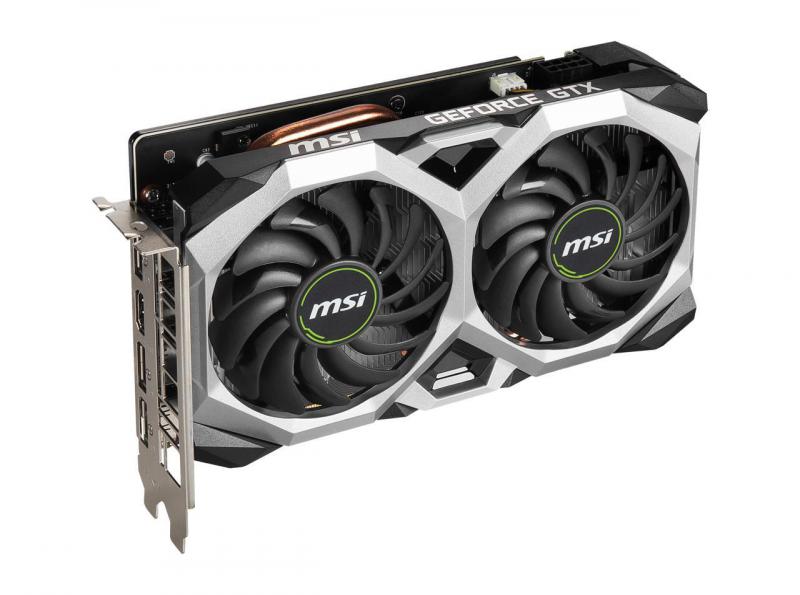

MSI GeForce GTX 1660 SUPER VENTUS XS OC 6GB 192-Bit GDDR6

Model

Brand

MSI

Model

GTX 1660 SUPER VENTUS XS OC

Interface

Interface

PCI Express 3.0 x16

Chipset

Chipset Manufacturer

NVIDIA

GPU

GeForce GTX 1660 SUPER

Boost Clock

1815 MHz

CUDA Cores

1408

Memory

Effective Memory Clock

14 Gbps

Memory Size

6GB

Memory Interface

192-Bit

Memory Type

GDDR6

3D API

DirectX

DirectX 12

OpenGL

OpenGL 4.5

Ports

HDMI

1 x HDMI 2.0b

Multi-Monitor Support

4

DisplayPort

3 x DisplayPort 1.4

Details

Max Resolution

7680 x 4320

Virtual Reality Ready

Yes

Cooler

Double Fans

Thermal Design Power

125W

System Requirements

Recommended PSU: 450W

Power Connector

8-Pin

HDCP Ready

2.2

Features

Features

TORX Fan 2.0:
Dispersion fan blade: Steep curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.

Afterburner Overclocking Utility:
OC Scanner: An automated function finds the highest stable overclock settings.
Kombustor: The latest DirectX versions benchmark supporting.
Predator: In-game video recording.

NVIDIA G-SYNC and HDR:
Get smooth, tear-free gameplay at refresh rates up to 240 Hz, plus HDR, and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.

Form Factor & Dimensions

Max GPU Length

204 mm

Card Dimensions (L x H)

203.96 mm x 128.02 mm

Additional Information

Date First Available

October 29, 2019
