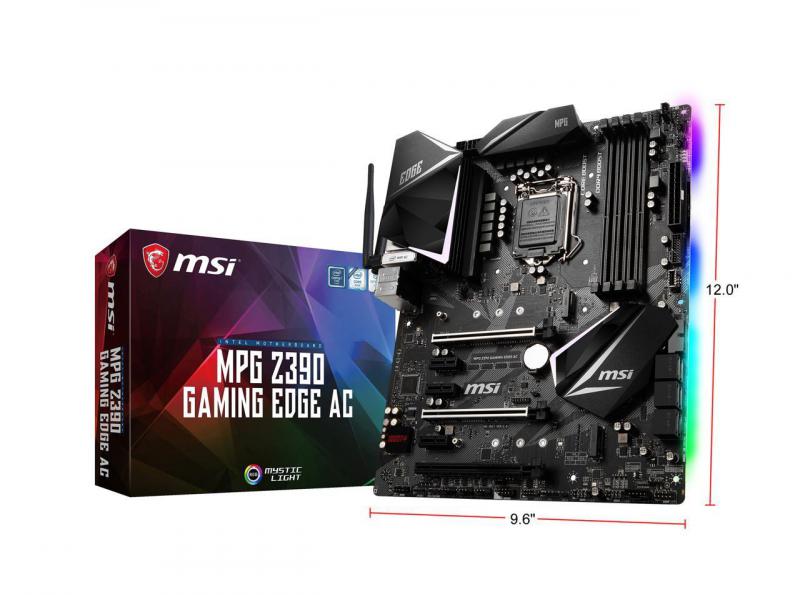

MSI MPG Z390 GAMING EDGE AC LGA 1151 (300 Series)

Model

Brand

MSI

Model

MPG Z390 GAMING EDGE AC

Supported CPU

CPU Socket Type

LGA 1151 (300 Series)

CPU Type

Supports Intel Core 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs

Chipsets

Chipset

Intel Z390

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic:
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60Hz

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133

Maximum Memory Supported

128GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)

PCI Express x1

3 x PCIe 3.0 x1 slots

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s ports*
* M.2 slots and SATA ports share the bandwidth.

M.2

2 x M.2 slot (Key M)*
Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices

* M.2 slots and SATA ports share the bandwidth.

Intel Optane Ready

Yes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

SATA RAID

0/1/5/10

Onboard Audio

Audio Chipset

Realtek ALC1220P Codec

Audio Channels

7.1-Channel High Definition Audio
Supports S/PDIF output

Onboard LAN

LAN Chipset

Intel I219-V

Max LAN Speed

10/100/1000Mbps

Wireless LAN

Intel Wireless-AC 9462 card
Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4 GHz / 5 GHz up to 433 Mbps

Bluetooth

Supports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

HDMI

1 x HDMI

RJ45

1 x RJ45

DisplayPort

1 x DisplayPort

USB 3.1

1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-A)
2 x USB 3.1 Gen1 (SuperSpeed USB) ports (Type-A)

USB 1.1/2.0

2 x USB 2.0 (High-speed USB) ports (Type-A)

USB Type-C

1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-C)

S/PDIF Out

1 x Optical

Audio Ports

5 Ports

Internal I/O Connectors

Onboard USB

1 x USB 3.1 Gen2 Type-C port
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

Other Connectors

1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Thunderbolt Add-on Card Connector
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
1 x 3-pin CORSAIR LED connector

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

304.80 mm x 243.84 mm

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector

Features

Features

DIY Friendly:
Keep Out Zone
XL PCI-E Clip
EZ Debug LED
Pump Fan
Total Fan Control

Enhance Performance:
Extended Heatsink Design
8-Pin + 4-Pin Power Connectors
Twin Turbo M.2
Intel Turbo USB 3.1 Gen2
Front USB Type-C
Core Boost
DDR4 Boost
Multi GPU-2-Way NVIDIA SLI Technology
Multi GPU-3-Way AMD CrossFire Technology
Game Boost

*BIOS
Click BIOS5
XMP
Hardware Moniter

*Software
Dragon Center
MSI APP Player
Mystic
