Trang chủ
»
Motherboard
»
MSI

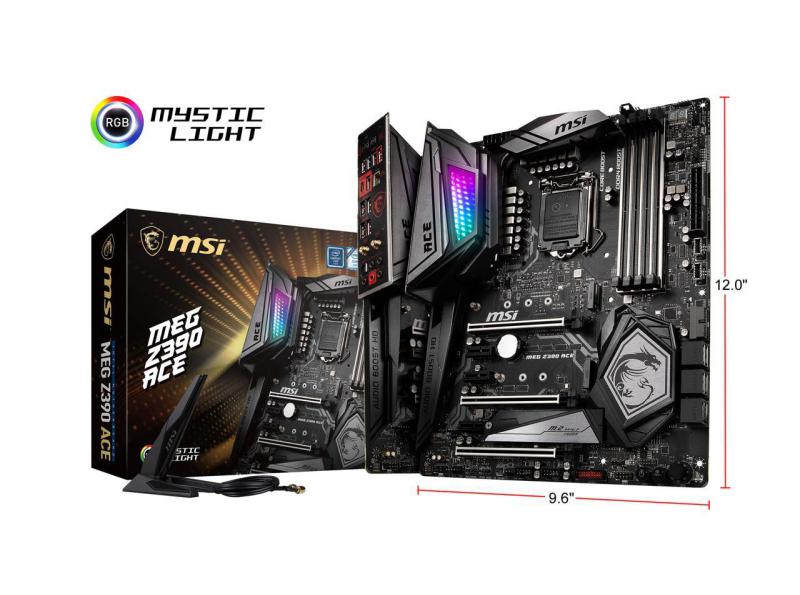

MSI MEG Z390 ACE LGA 1151 (300 Series)
Hãng sản xuất:
MSI
Mã sản phẩm:
MEG Z390 ACE
Xuất xứ:
Taiwan
Bảo hành:
36 tháng
Kho hàng:
Sẵn hàng
Giá:
7.200.000 VNĐ
Chi tiết sản phẩm
Model
Brand
MSI
Model
MEG Z390 ACE
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
Chipsets
Chipset
Intel Z390
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
3 x PCIe 3.0 x16 slots
- Support x16/x0/x0, x8/x8/x0, x8/x4/x4 modes
PCI Express x1
3 x PCIe 3.0 x1 slots
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s ports*
* M.2 slots and SATA ports share the bandwidth.
M.2
3 x M.2 slot (Key M)*
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices
- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices
- M2_3 supports up to PCIe 3.0 x4, 2242/2260/2280 storage devices
* M.2 slots and SATA ports share the bandwidth.
Intel Optane Ready
Yes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1220
Audio Channels
7.1-Channel High Definition Audio
Supports S/PDIF output
Onboard LAN
LAN Chipset
1 x Killer E2500 Gigabit LAN controller
Max LAN Speed
10/100/1000Mbps
Wireless LAN
Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4 GHz / 5 GHz (160 MHz) up to 1.73 Gbps
Bluetooth
Supports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5
Rear Panel Ports
RJ45
1 x RJ45
USB 3.1
4 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-A)
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port (Type-A)
USB 1.1/2.0
4 x USB 2.0 (High-speed USB) ports (Type-A)
USB Type-C
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port (Type-C)
S/PDIF Out
1 x Optical
Audio Ports
5 Ports
Antenna Connectors
Wi-Fi/Bluetooth Antenna Connectors
Internal I/O Connectors
Onboard USB
2 x USB 3.1 Gen2 Type-C ports
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
1 x 3-pin CORSAIR LED connector
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
304.80 mm x 243.84 mm
Power Pin
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Features
Features
DIY Friendly:
Pre-installed I/O Shielding
Keep Out Zone
XL PCI-E Clip
Easy Button3
EZ Debug LED
Debug LED
Pump Fan
Total Fan Control
Enhance Performance:
Dual 8 Pin Connectors
Triple Turbo M.2
Intel Turbo USB 3.1 Gen2
Lightning USB
Dual Front USB 3.1 Gen2 Type C
Core Boost
DDR4 Boost
Multi GPU-2-Way NVIDIA SLI Technology
Multi GPU-3-Way AMD CrossFire Technology
Game Boost (8 modes)
*BIOS
Click BIOS5
BIOS FLASHBACK+
XMP
Hardware Moniter
*Software
Dragon Center
MSI APP Player
Mystic Light 3
In-Game Advantages:
*Audio
Audio Boost HD
Nahimic3
Voice Boost
*LAN
Killer LAN
Intel Wi-Fi
GAMING LAN with Killer LAN Manager
GAMING HOTKEY
GAMING MOUSE Control
VR Ready
Exhilarating and Inspiring:
Mystic Light Infinity
Mystic Light Extension (RGB)
Mystic Light Extension (RAINBOW)
Mystic Light Extension (CORSAIR)
Mystic Light Sync
Loyal Comrade:
DDR4 Steel Armor
M.2 Shield Frozr
PCI-E Steel Armor
7000+ Quality Test
Additional Information
Date First Available
October 08, 2018
