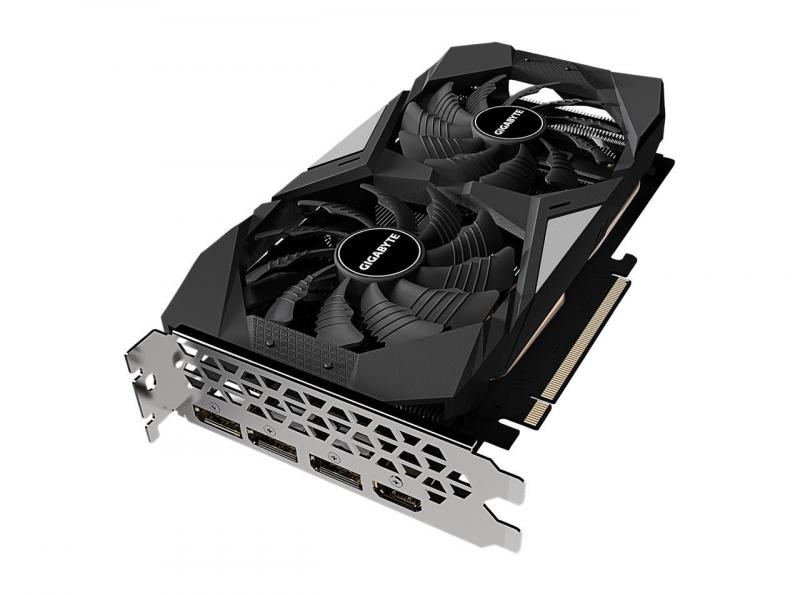

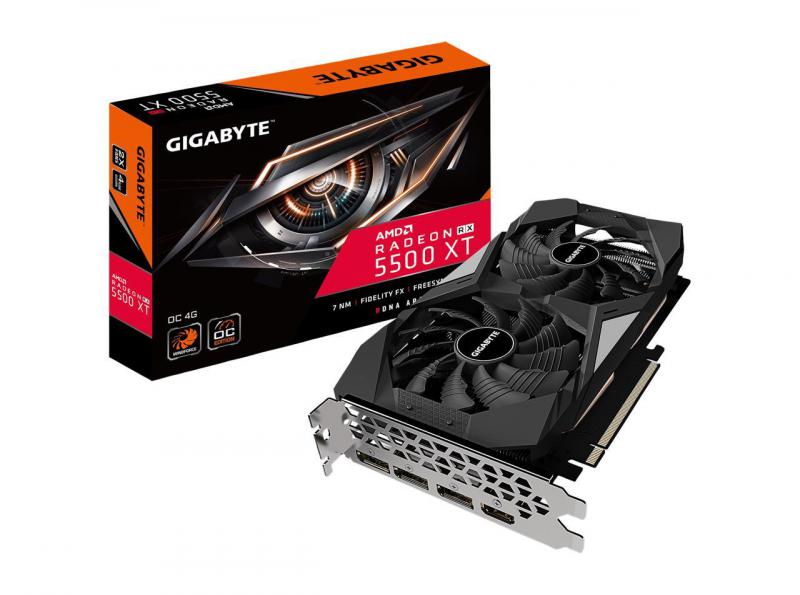

GIGABYTE Radeon RX 5500 XT 4GB 128-Bit GDDR6 PCI Express 4.0

Model

Brand

GIGABYTE

Model

GV-R55XTOC-4GD

Interface

Interface

PCI Express 4.0 x16

Chipset

Chipset Manufacturer

AMD

GPU Series

AMD Radeon RX 5500 Series

GPU

Radeon RX 5500 XT

Core Clock

1647 MHz

Boost Clock

1845 MHz

Stream Processors

1408 Stream Processors

Memory

Effective Memory Clock

14000 MHz

Memory Size

4GB

Memory Interface

128-Bit

Memory Type

GDDR6

3D API

DirectX

DirectX 12

OpenGL

OpenGL 4.6

Ports

HDMI

1 x HDMI 2.0b

Multi-Monitor Support

4

DisplayPort

3 x DisplayPort 1.4

Details

Max Resolution

7680 x 4320 @ 60 Hz

Virtual Reality Ready

Yes

Cooler

WINDFORCE 2X

System Requirements

System PSU Limitation (W): 450

Power Connector

8-Pin

Features

Features

Powered by AMD Radeon RX 5500 XT

Integrated with 4GB GDDR6 128-bit memory interface

WINDFORCE 2X Cooling System with alternate spinning fans

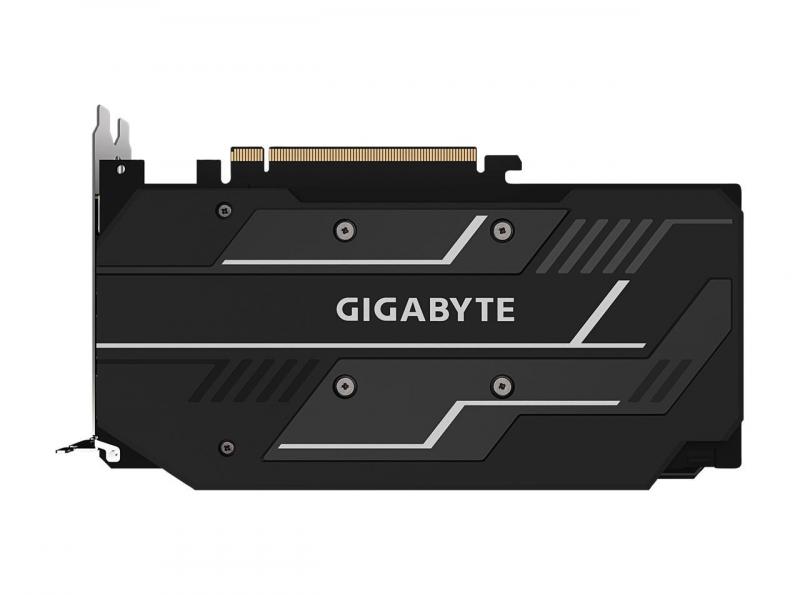

Protection Back Plate

PCI-Express 4.0 Support

Form Factor & Dimensions

Form Factor

ATX

Max GPU Length

225 mm

Card Dimensions (L x H)

8.86" x 4.69"

Slot Width

Dual Slot

Packaging

Package Contents

Accessories:
Quick Guide

Additional Information

Date First Available

December 12, 2019
