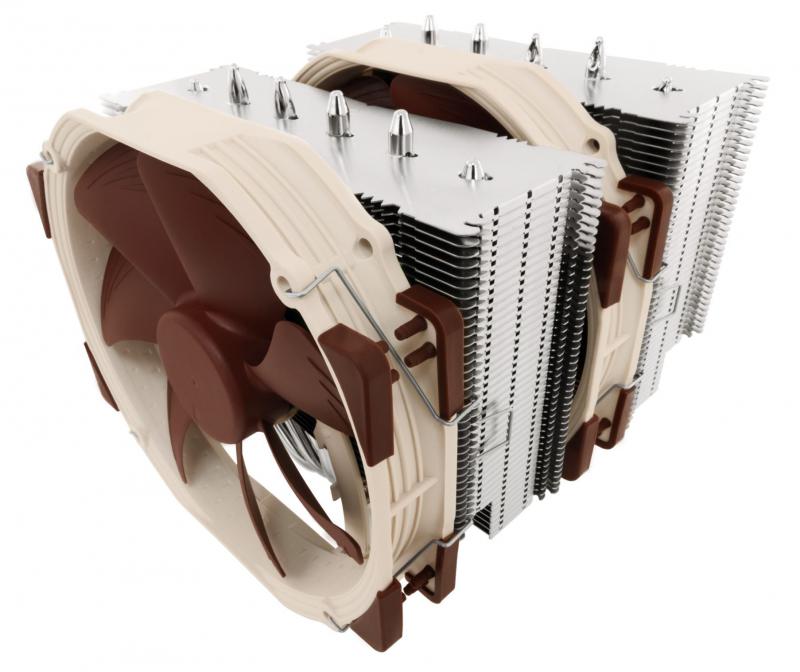

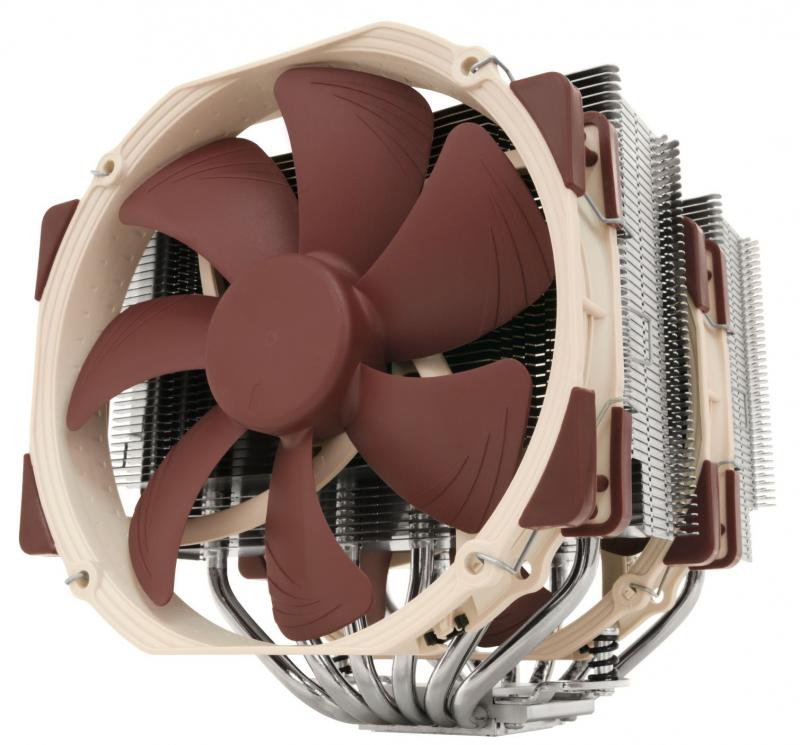

Noctua NH-D15 SSO2 D-Type Premium CPU Cooler, NF-A15 x 2 PWM Fans

Model

Brand

Noctua

Model

NH-D15

Details

Type

Fan & Heatsinks

CPU Socket Compatibility

Intel LGA 2011-0 & LGA 2011-3 (Square ILM) / LGA 1156 / LGA 1155 / LGA 1151 / LGA 1150AMD AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 (backplate required)

Bearing Type

SSO2

RPM

1500 RPM (Fan without Adapter)1200 RPM (with L.N.A.)

Air Flow

82.52 CFM (Fan without Adapter)67.98 CFM (with L.N.A.)

Noise Level

24.60 dB(A) (Fan without Adapter)19.20 dB(A) (with L.N.A.)

Power Connector

4 Pin

Heatsink Material

Copper (base and heat-pipes), aluminium

Fan Mounting Types to Heatsink

Horizontal

Dimensions & Weight

Max CPU Cooler Height

165 mm

Fan Dimensions

140.00 x 150.00 x 25.00mm (with 120mm mounting holes), 140.00 x 140.00 x 25.00mm (with 120mm mounting holes), 120.00 x 120.00 x 25.00mm

Heatsink Dimensions

160.00 x 150.00 x 135.00mm

Weight

2.91 lbs.

Features

Features

Based on the award-winning NH-D146 heatpipe dual tower designWidened fin stack and expanded heatpipe layoutHigh RAM compatibility in single fan modeDual NF-A15 140mm fansPWM support and Low-Noise AdaptorExcellent component coolingSecuFirm2 mounting systemCompatibility with past and future socketsNT-H1 thermal compound

Package Contents

Package Contents

2 x NF-A15 PWM premium fan2 x Low-Noise Adaptor (L.N.A.)Y-cableNT-H1 high-grade thermal compoundSecuFirm2 Mounting KitNoctua Metal Case-Badge

Group

Model

NH-D15

Details

Compatibility

Intel LGA2011-0 & LGA2011-3 (Square ILM) / LGA1156 / LGA1155 / LGA1151 / LGA1150AMD AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ (backplate required)

Additional Information

Date First Available

July 20, 2020
