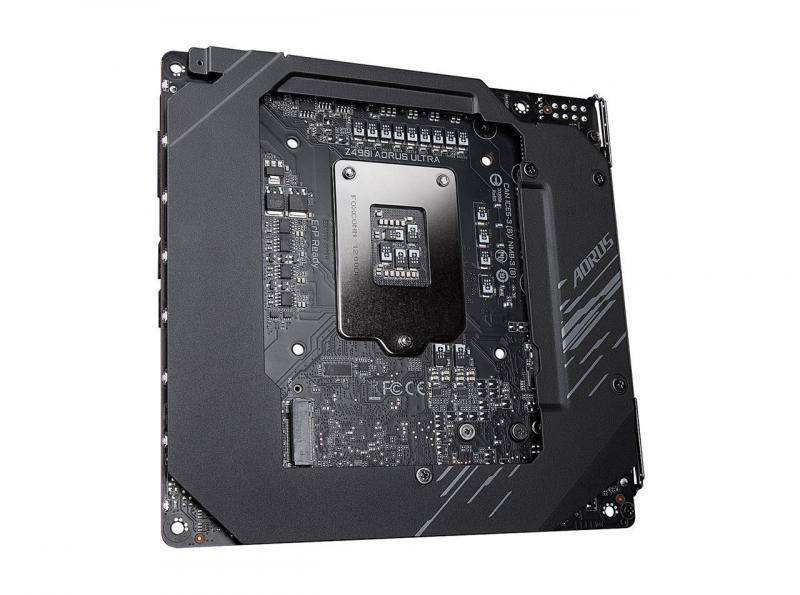

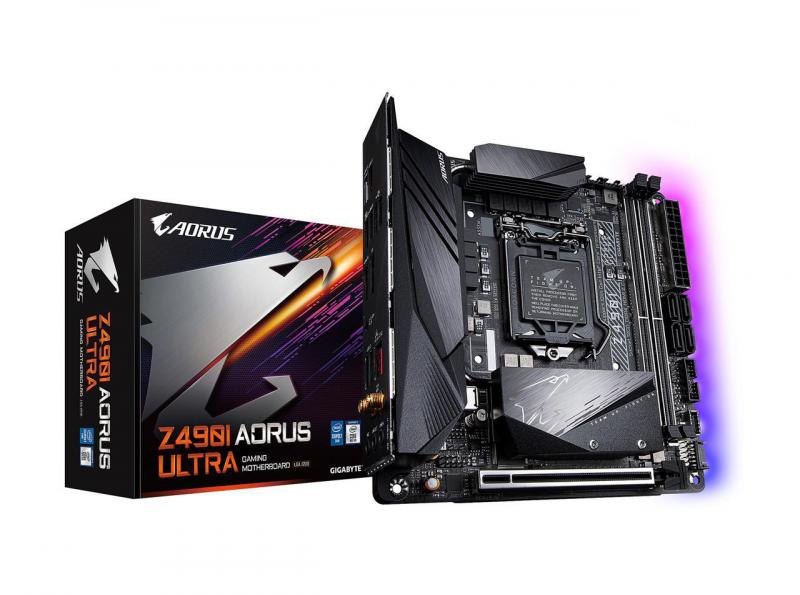

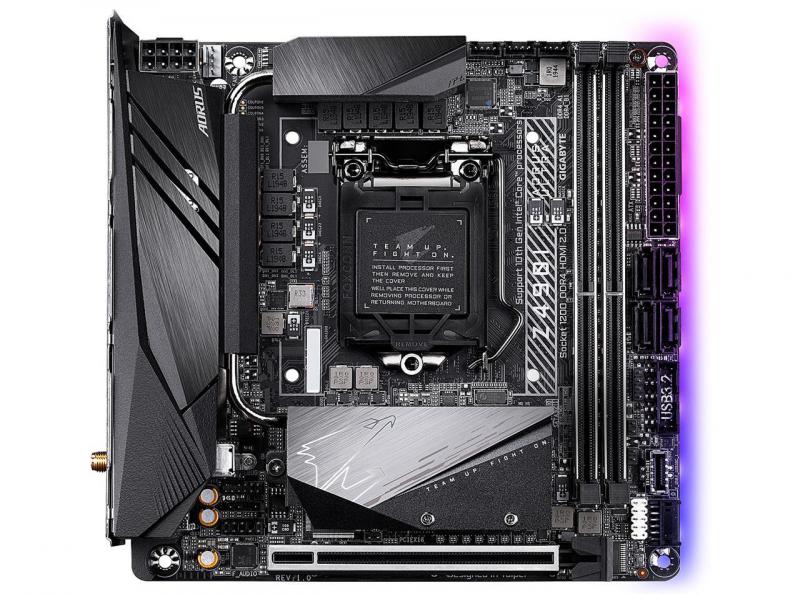

GIGABYTE Z490I AORUS ULTRA LGA 1200 Intel Z490 Mini-ITX
Hãng sản xuất: |
Gigabyte |
Mã sản phẩm: |
Z490I AORUS ULTRA |
Xuất xứ: |
Taiwan |
Bảo hành: |
36 tháng |
Kho hàng: |
Sẵn hàng |
Giá: |
6.350.000 VNĐ |
|
|
|
Chi tiết sản phẩm
ModelBrand | GIGABYTE |
---|
Model | Z490I AORUS ULTRA |
---|
Supported CPUCPU Socket Type | LGA 1200 |
---|
CPU Type | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
---|
ChipsetsChipset | Intel Z490 |
---|
Onboard VideoOnboard Video Chipset | Integrated Graphics Processor+PARADE PS175 chip:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512MB |
---|
MemoryNumber of Memory Slots | 2×288pin |
---|
Memory Standard | Intel Core i9/i7 processors: Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules |
---|
Maximum Memory Supported | 64GB |
---|
Channel Supported | Dual Channel |
---|
Expansion SlotsPCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) |
---|
Storage DevicesSATA 6Gb/s | 4 x SATA 6Gb/s |
---|
M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB) |
---|
Intel Optane Ready | Yes |
---|
SATA RAID | 0/1/5/10 |
---|
Onboard AudioAudio Chipset | Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio. |
---|
Audio Channels | 2/4/5.1/7.1-channel * To configure7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
---|
Onboard LANLAN Chipset | Intel 2.5GbE LAN chip |
---|
Max LAN Speed | 10/100/1000/2500Mbps |
---|
Wireless LAN | Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
---|
Bluetooth | BLUETOOTH 5.1 |
---|

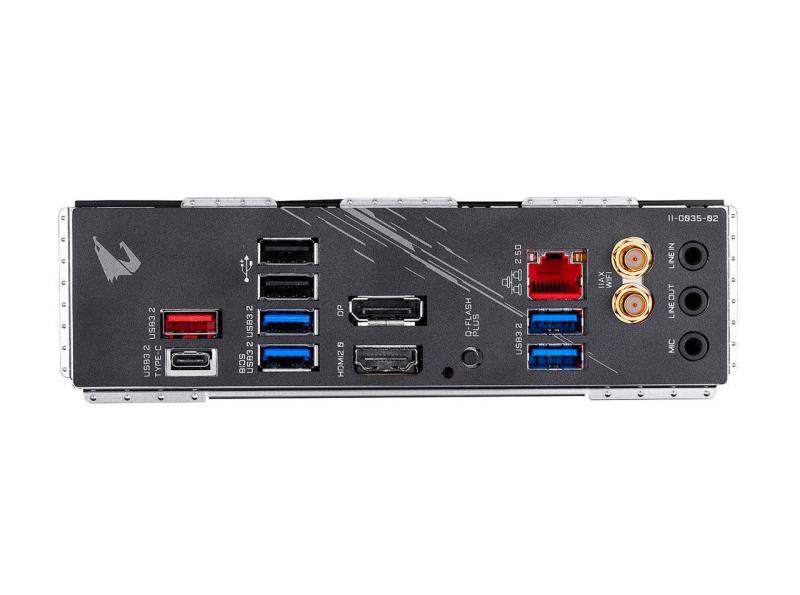

Rear Panel PortsBack I/O Ports | 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
---|
Internal I/O ConnectorsOnboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
---|
Other Connectors | 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
---|
Physical SpecForm Factor | Mini ITX |
---|
LED Lighting | RGB |
---|
Dimensions (W x L) | 6.7" x 6.7" |
---|
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
---|
FeaturesFeatures | I/O Controller: iTE I/O Controller Chip
H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software: Norton Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license)
Operating System: Support for Windows 10 64-bit |
---|
