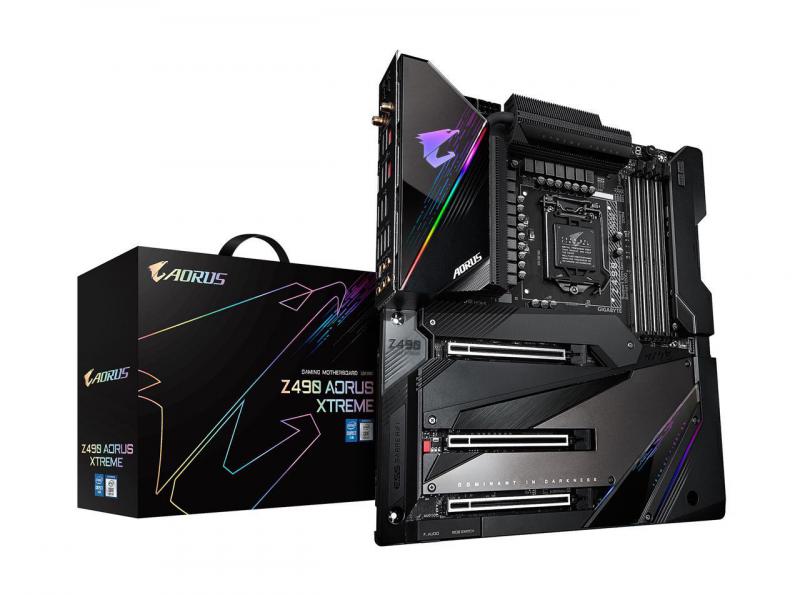

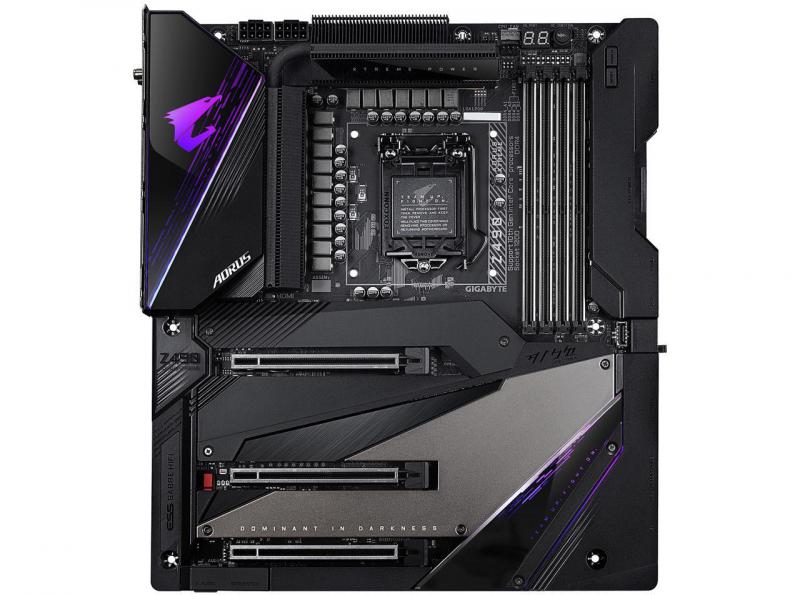

GIGABYTE Z490 AORUS XTREME LGA 1200 Intel Z490
Hãng sản xuất: |
Gigabyte |
Mã sản phẩm: |
Z490 AORUS XTREME |
Xuất xứ: |
Taiwan |
Bảo hành: |
36 tháng |
Kho hàng: |
Sẵn hàng |
Giá: |
19.400.000 VNĐ |
|
|
| |
 |
Chi tiết sản phẩm
Model| Brand | GIGABYTE |
|---|
| Model | Z490 AORUS XTREME |
|---|
Supported CPU| CPU Socket Type | LGA 1200 |
|---|
| CPU Type | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/ Intel Celeron processors in the LGA1200 package |
|---|
Chipsets| Chipset | Intel Z490 |
|---|
Onboard Video| Onboard Video Chipset | Integrated Graphics Processor+Intel Thunderbolt 3 Controller:
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed.
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512MB |
|---|
Memory| Number of Memory Slots | 4×288pin |
|---|
| Memory Standard | Intel Core i9/i7 processors:
Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz |
|---|
| Maximum Memory Supported | 128GB |
|---|
| Channel Supported | Dual Channel |
|---|
Expansion Slots| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector.
(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) |
|---|
Storage Devices| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH) |
|---|
| Intel Optane Ready | Yes |
|---|
| SATA RAID | 0/1/5/10 |
|---|
Onboard Audio| Audio Chipset | Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio) |
|---|
| Audio Channels | 2/4/5.1/7.1-channel
Support for S/PDIF Out |
|---|
Onboard LAN| LAN Chipset | AQUANTIA 10GbE LAN |
|---|
| Second LAN Chipset | Intel 2.5GbE LAN chip |
|---|
| Max LAN Speed | 10Gbps + 10/100/1000/2500Mbps |
|---|
| Wireless LAN | Intel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment. |
|---|
| Bluetooth | BLUETOOTH 5.1 |
|---|
Rear Panel Ports| Back I/O Ports | 1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
4 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header |
|---|
| Other Connectors | 1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x noise detection header
1 x front panel header
1 x front panel audio header
2 x temperature sensor headers
1 x power button
1 x reset button
1 x OC button
2 x BIOS switches
Voltage Measurement Points |
|---|
Physical Spec| Form Factor | Extended ATX |
|---|
| LED Lighting | RGB |
|---|
| Dimensions (W x L) | 12.0" x 10.7" |
|---|
| Power Pin | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
|---|
