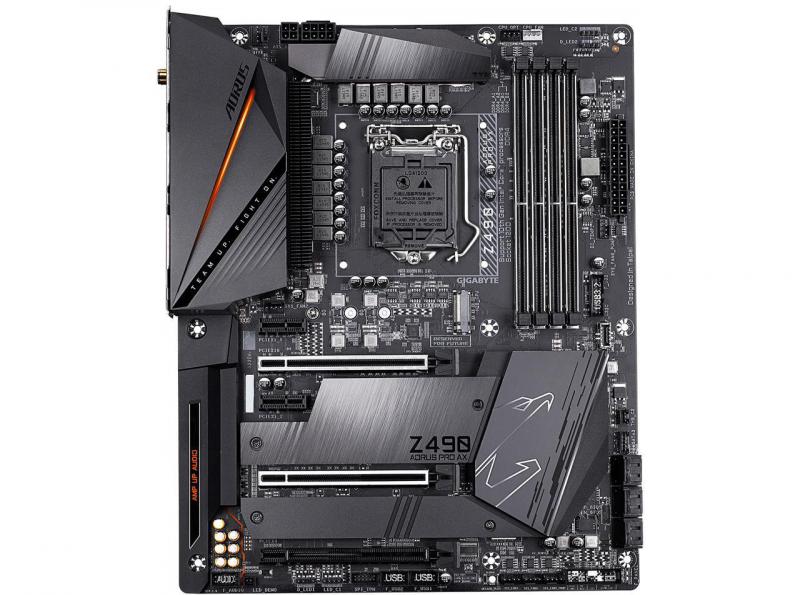

GIGABYTE Z490 AORUS PRO AX LGA 1200 Intel Z490
Hãng sản xuất: |
Gigabyte |
Mã sản phẩm: |
Z490 AORUS PRO AX |
Xuất xứ: |
Taiwan |
Bảo hành: |
36 tháng |
Kho hàng: |
Sẵn hàng |
Giá: |
6.650.000 VNĐ |
|
|
|
Chi tiết sản phẩm
ModelBrand | GIGABYTE |
---|
Model | Z490 AORUS PRO AX |
---|
Supported CPUCPU Socket Type | LGA 1200 |
---|
CPU Type | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
---|
ChipsetsChipset | Intel Z490 |
---|
Onboard VideoOnboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512MB |
---|
MemoryNumber of Memory Slots | 4×288pin |
---|
Memory Standard | Intel Core i9/i7 processors: Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz |
---|
Maximum Memory Supported | 128GB |
---|
Channel Supported | Dual Channel |
---|
Expansion SlotsPCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
---|
PCI Express x1 | 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
---|
Storage DevicesSATA 6Gb/s | 6 x SATA 6Gb/s |
---|
M.2 | 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB) |
---|
Intel Optane Ready | Yes |
---|
SATA RAID | 0/1/5/10 |
---|
Onboard AudioAudio Chipset | Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio. |
---|
Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
---|
Onboard LANLAN Chipset | Intel 2.5GbE LAN chip |
---|
Max LAN Speed | 10/100/1000/2500Mbps |
---|
Wireless LAN | Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
---|
Bluetooth | BLUETOOTH 5.1 |
---|
Rear Panel PortsBack I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
---|
Internal I/O ConnectorsOnboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
---|
Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
---|
Physical SpecForm Factor | ATX |
---|
LED Lighting | RGB |
---|
Dimensions (W x L) | 12.0" x 9.6" |
---|
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connecto |
---|
FeaturesFeatures | Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
|
