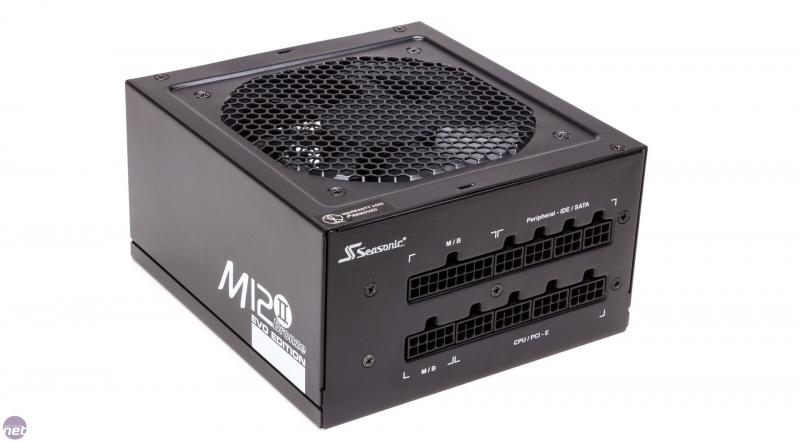

SeaSonic M12II 620 Bronze 620W Evo ATX12V V2.3 / EPS 12V V2.91 SLI Ready 80 PLUS BRONZE Certified Modular Active PFC Power Supply

Model

Brand

SeaSonic

Model

M12II 620 Bronze

Spec

Type

ATX12V V2.3 / EPS 12V V2.91

Maximum Power

620W

Fans

120mm ball bearing cooling fan

PFC

Active

Main Connector

24Pin

+12V Rails

2

PCI-Express Connector

1 x 6-Pin, 1 x 6+2-Pin

SATA Power Connector

9

SLI

SLI Ready

Modular

Modular

Efficiency

>87%

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50/60 Hz

Output

+3.3V@24A, +5V@24A, +12V1@24A, +12V2@24A, -12V@0.8A, +5VSB@2.5A

Dimensions

6.3" x 5.9" x 3.4"

Dimensions & Weight

Dimensions

10.8" x 8" x 4"
