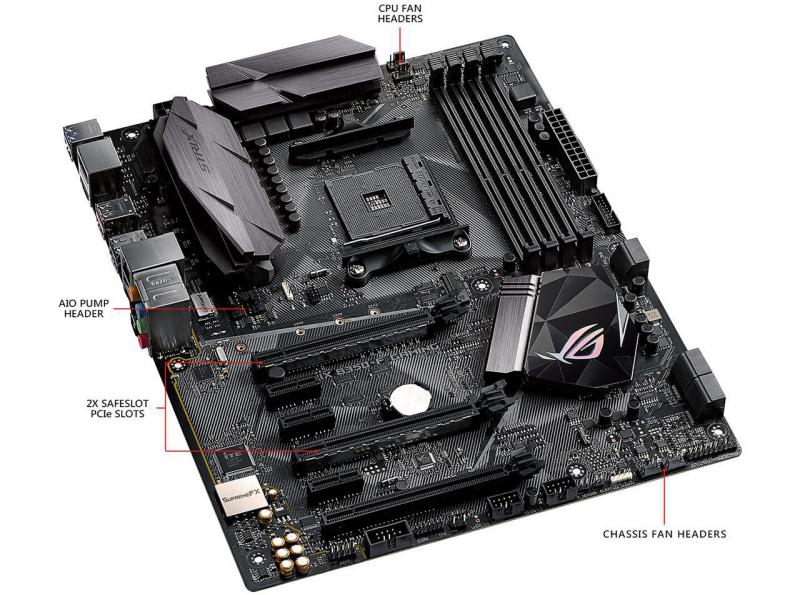

ASUS ROG STRIX B350-F GAMING AM4

Model

Brand

ASUS

Series

ROG

Model

STRIX B350-F GAMING

Supported CPU

CPU Socket Type

AM4

CPU Type

Ryzen / Athlon / A-Series

Chipsets

Chipset

AMD B350

Memory

Number of Memory Slots

4×288pin

Memory Standard

Ryzen Processors: DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133 *
7th Generation A-series/Athlon Processors: DDR4 2400/ 2133 *
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

Ryzen Processors:
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)


7th Generation A-series/Athlon Processors:
1 x PCIe 3.0/2.0 x16 (x8 mode)

PCI Express 2.0 x16

1 x PCIe 2.0 x16 (max at x4 mode) *1
*1 PCIEX16_3 Socket shares bandwidth witch PCIEX1_1 and PCIEX1_3

PCI Express x1

3 x PCIe 2.0 x1

Storage Devices

SATA 6Gb/s

AMD Ryzen Processors:
2 x SATA 6Gb/s port(s)

AMD B350 chipset:
4 x SATA 6Gb/s port(s)

M.2

Ryzen Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode) *5


7th Generation A-series/Athlon Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x2 mode) *6


*5 When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
*6 When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.

SATA RAID

0/1/10

Onboard Video

Onboard Video Chipset

Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048MB

Onboard Audio

Audio Chipset

ROG SupremeFX High Definition Audio CODEC S1220A

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Intel i211AT

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

HDMI

1 x HDMI

RJ45

1 x RJ45

DisplayPort

1 x DisplayPort

USB 3.1

2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1

USB 1.1/2.0

2 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

5 Ports

Internal I/O Connectors

Onboard USB

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors

2 x RGB Header(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0" x 9.6"

Power Pin

1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)

Features

Features

Multi-GPU Support:
Supports AMD 3-Way CrossFireX Technology

ROG Exclusive Features:
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV

Special Features:
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages
TPU:
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU:
- EPU
AURA:
- Aura Lighting Control
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics:
- AURA-RGB Lighting
Digi+VRM

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Operating System:
Windows 10 64-bit

Packaging

Package Contents

Accessories:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80cm)
1 x ROG coaster(s)
