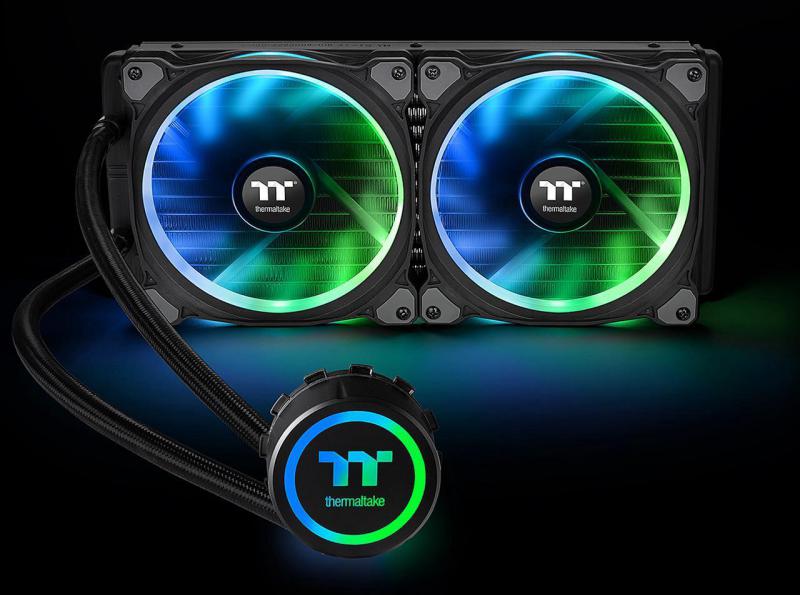

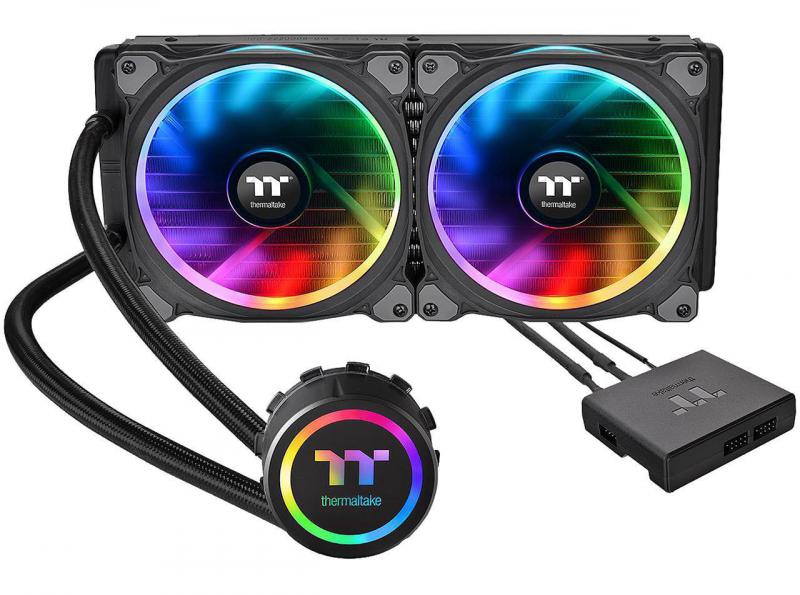

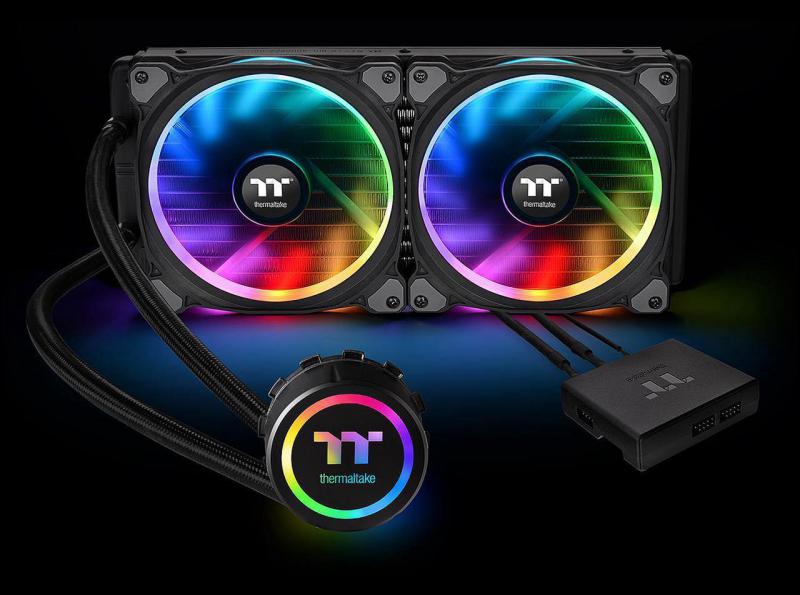

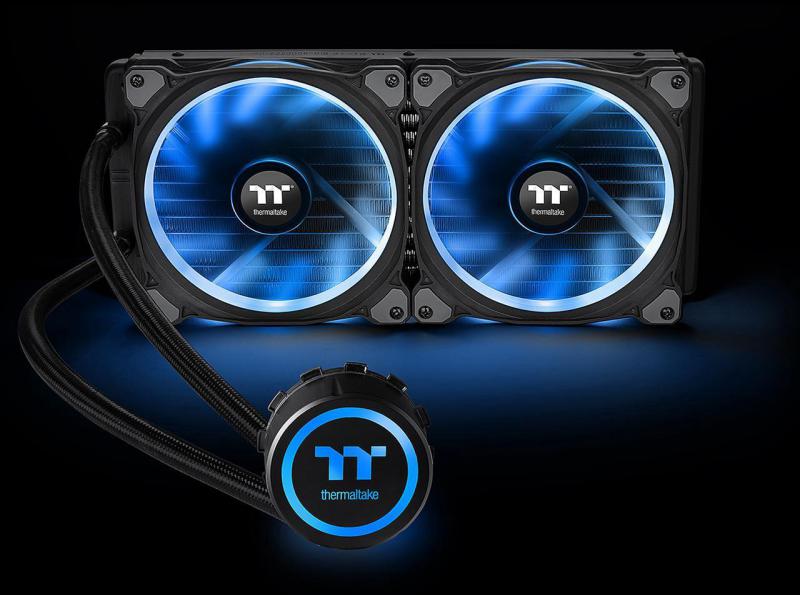

Thermaltake Floe AIO Riing RGB 280 TT Premium Edition PWM TR4 LGA2066

Model

Brand

Thermaltake

Series

Floe Riing RGB 280 TT Premium Edition

Model

CL-W167-PL14SW-A

Type

Liquid Cooling System

Block

Block Compatibility

Intel LGA 2066 / 2011-3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150

AMD Socket AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1

Block Dim.

280.00 x 140.00 x 27.00 mm

Block Material

CPU Plate (Water Block) Material: Copper
Radiator Material: Aluminum

Pump

Pump Capacity

Rated Voltage: 12V / 5V
Rated Current: 0.325A / 0.4A
Motor Speed: 3600 R.P.M

Radiator

Radiator Dim.

280.00 x 120.00 x 27.00 mm

Fan

Fan Size

2 Fan Slots (140mm)

Fan Dim.

140.00 x 140.00 x 25.00 mm

Fan RPM

500 - 1400 RPM

Fan Air Flow

22.57 - 63.19 CFM

Fan Noise

19.8 - 24.7 dB(A)

Fan Connector

5 Pin

LED Color

RGB Color Selector Options with 16.8 million colors

Tube

Tube Dim.

326mm (Length)

Tube Material

Rubber

Features

Features

Software Enabled fuctions for RGB LED, Fan Speed and Brightness

Expandable Software Ready to link other Riing products together (Link Cable Included)

High performance copper base plate design accelerates heat conductivity

Supports up to four 140mm fans for Push / Pull configurations.

Riing Plus 14 RGB LED Fans (for two) High Static Pressure Design

Custom designed 280mm large surface aluminum radiator

High quality pump enables maximum water circulation and worry free maintenance

Includes universal mounting kit for multiple CPU socket configurations

Factory filled coolant requires no refill

Easy installation with maintenance-free operation

Package Contents

Package Contents

ThermaltakeFloe AIO 280mm Radiator Liquid CPU System
2 x 140mm Riing Plus 14 RGB Fans with Cable Hardware
Universal Socket Kit (TR4 / LGA 2066 ready)
Radiator and Fan Mounting Screws (Corse / Fine Screws both included)
Quick Start Guide
