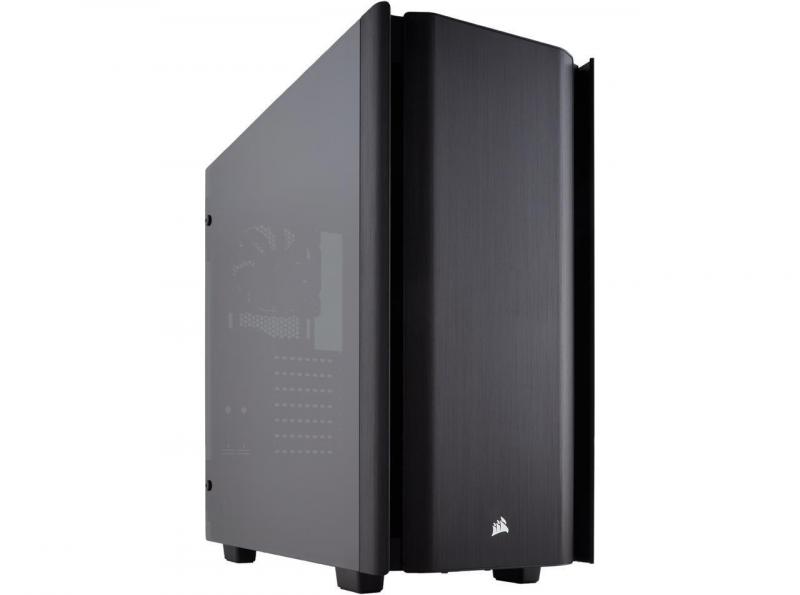

Corsair Obsidian 500D Black - Tempered Glass ATX Mid Tower Computer Case

Model

Brand

Corsair

Series

Obsidian 500D

Model

CC-9011116-WW

Details

Type

ATX Mid Tower

Color

Black

Case Material

Aluminum / Tempered Glass

With Power Supply

No

Motherboard Compatibility

Micro ATX / ATX / Mini-ITX

Side Panel Window

Yes

Expansion

External 5.25" Drive Bays

0

Internal 3.5" Drive Bays

2

Internal 2.5" Drive Bays

3

Expansion Slots

7

Front Panel Ports

Front Ports

USB 3.1 Type-C / 2 x USB 3.0 / Headphone and Microphone jacks / Power and Reset

Cooling System

Fan Options

Front: 3 x 120mm or 2 x 140mm fan (1 x 120mm fan included)

Top: 2 x 120/140mm fan

Rear: 1 x 120mm fan (included)

Radiator Options

Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 240mm / Top - Up to 280mm

Dimensions & Weight

Max GPU Length Allowance

370 mm

Max CPU Cooler Height Allowance

170 mm

Dimensions (H x W x D)

20.00" x 9.17" x 19.76"

Weight

12.15 lbs.

Additional Info

Features

Iconic Obsidian Style combines clean exterior lines and smoked tempered glass

Premium aluminum and tempered glass construction

Cooling made easy with removeable front and top fan trays

Aluminum front panel, top plate and door handles

Direct Airflow Path design channels cool air where your PC needs it most

Future-proof front I/O with USB 3.1 Type-C

Hassle-free storage that’s hidden and easy to access

Cable management made simple with integrated PSU cover and rear cable cover

Easy to clean front, top, and PSU dust filters for a low maintenance case that always looks its best

Radiator Compatibility:
120mm: Front, Top, or Rear

240mm: Front or Top

280mm: Front or Top

360mm: Front only

Maximum PSU Length: 225mm
