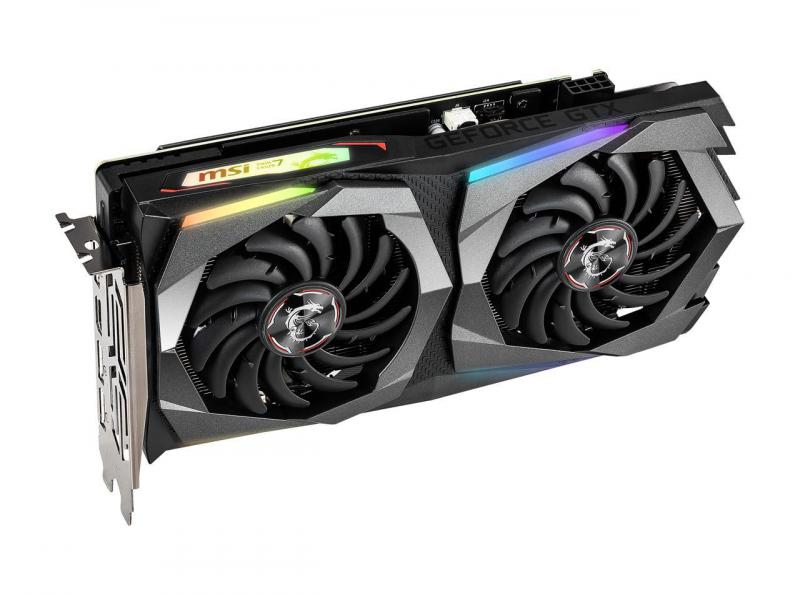

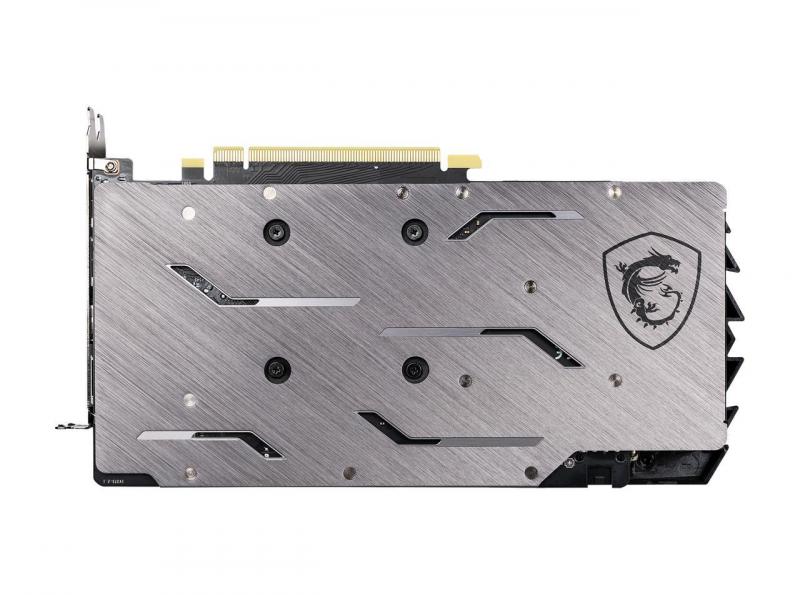

MSI GeForce GTX 1660 SUPER GAMING X 6GB 192-Bit GDDR6

Model

Brand

MSI

Model

GTX 1660 SUPER GAMING X

Interface

Interface

PCI Express 3.0 x16

Chipset

Chipset Manufacturer

NVIDIA

GPU

GeForce GTX 1660 SUPER

Boost Clock

1830 MHz

CUDA Cores

1408

Memory

Effective Memory Clock

14 Gbps

Memory Size

6GB

Memory Interface

192-Bit

Memory Type

GDDR6

3D API

DirectX

DirectX 12

OpenGL

OpenGL 4.5

Ports

HDMI

1 x HDMI 2.0b

Multi-Monitor Support

4

DisplayPort

3 x DisplayPort 1.4

Details

Max Resolution

7680 x 4320

Virtual Reality Ready

Yes

Cooler

Double Fans

Thermal Design Power

125W

System Requirements

Recommended PSU: 450W

Power Connector

8-Pin

HDCP Ready

2.2

Features

Features

Twin Frozr 7 Thermal Design:
TORX Fan 3.0
- Dispersion fan blade: Steep curved blade accelerating the airflow.
- Traditional fan blade: Provides steady airflow to massive heat sink below.
Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high.
Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment.

Dragon Center:
A consolidated platform that offers all software including MYSTIC LIGHT and One-Click Overclocking functionality for your MSI Gaming product.

Form Factor & Dimensions

Max GPU Length

247 mm

Card Dimensions (L x H)

246.89 mm x 127.00 mm

Additional Information

Date First Available

October 29, 2019
