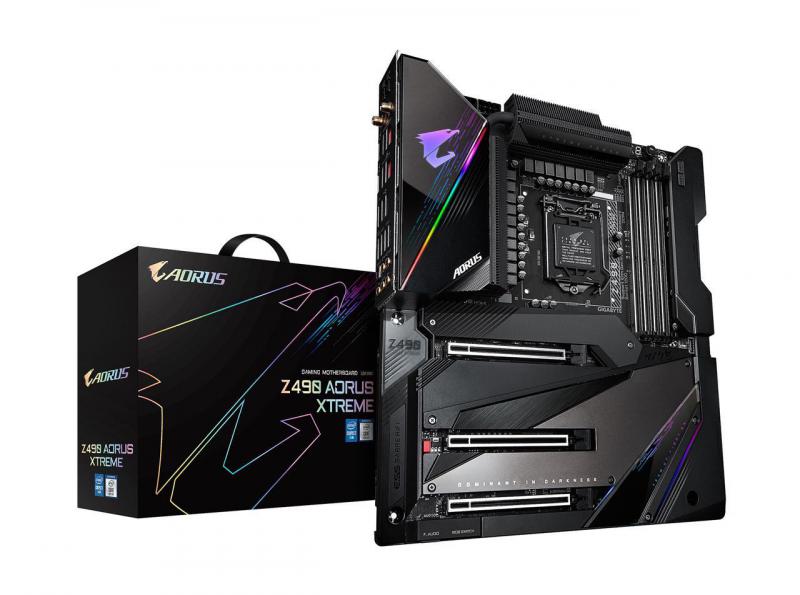

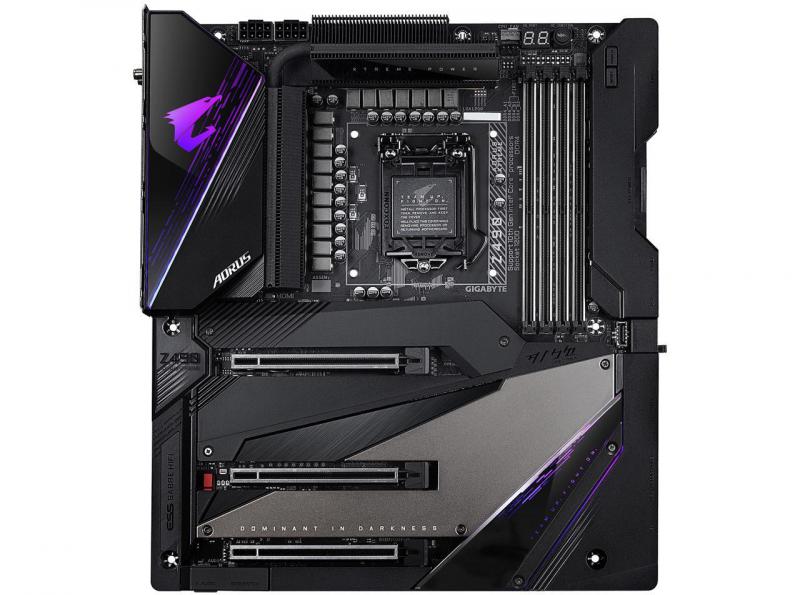

GIGABYTE Z490 AORUS XTREME LGA 1200 Intel Z490

Hãng sản xuất:

 Gigabyte

Mã sản phẩm:

 Z490 AORUS XTREME

Xuất xứ:

 Taiwan

Bảo hành:

 36 tháng

Kho hàng:

 Sẵn hàng

Giá:

 19.400.000 VNĐ
  Thêm vào giỏ hàng

Chi tiết sản phẩm

Model
BrandGIGABYTE
ModelZ490 AORUS XTREME
Supported CPU
CPU Socket Type LGA 1200
CPU TypeSupport for 10th Generation Intel Core i9 processors/Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Chipsets
Chipset Intel Z490
Onboard Video
Onboard Video Chipset Integrated Graphics Processor+Intel Thunderbolt 3 Controller:

2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed.
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512MB
Memory
Number of Memory Slots4×288pin
Memory StandardIntel Core i9/i7 processors:
Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector.

(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)
Audio Channels 2/4/5.1/7.1-channel
Support for S/PDIF Out
Onboard LAN
LAN ChipsetAQUANTIA 10GbE LAN
Second LAN ChipsetIntel 2.5GbE LAN chip
Max LAN Speed10Gbps + 10/100/1000/2500Mbps
Wireless LANIntel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBLUETOOTH 5.1
Rear Panel Ports
Back I/O Ports1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
4 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
Internal I/O Connectors
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x noise detection header
1 x front panel header
1 x front panel audio header
2 x temperature sensor headers
1 x power button
1 x reset button
1 x OC button
2 x BIOS switches
Voltage Measurement Points
Physical Spec
Form FactorExtended ATX
LED LightingRGB
Dimensions (W x L)12.0" x 10.7"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Features
