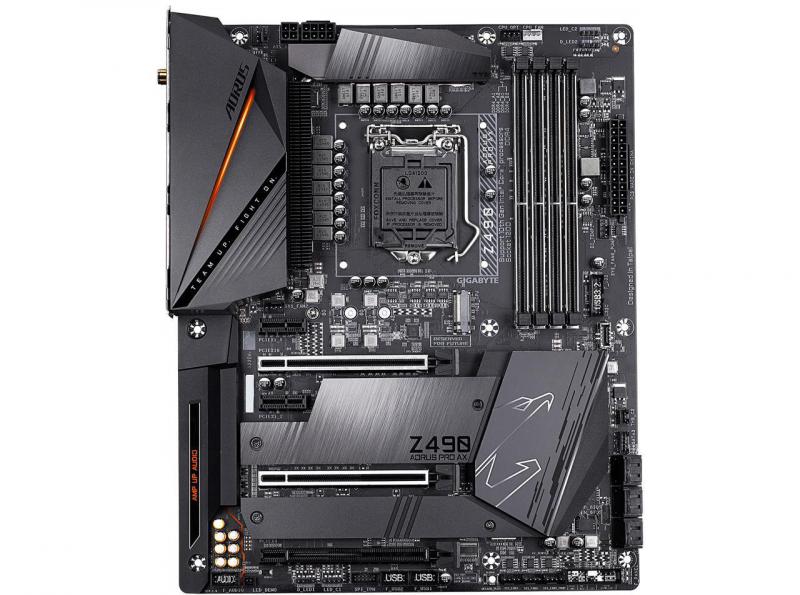

    GIGABYTE Z490 AORUS PRO AX LGA 1200 Intel Z490

    Hãng sản xuất:

    		 Gigabyte

    Mã sản phẩm:

    		 Z490 AORUS PRO AX

    Xuất xứ:

    		 Taiwan

    Bảo hành:

    		 36 tháng

    Kho hàng:

    		 Sẵn hàng

    Giá:

    		 6.650.000 VNĐ
      Thêm vào giỏ hàng

    Chi tiết sản phẩm

    Model
    BrandGIGABYTE
    ModelZ490 AORUS PRO AX
    Supported CPU
    CPU Socket Type LGA 1200
    CPU TypeSupport for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
    Chipsets
    Chipset Intel Z490
    Onboard Video
    Onboard Video Chipset Integrated Graphics Processor-Intel HD Graphics support:

    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.

    Maximum shared memory of 512MB
    Memory
    Number of Memory Slots4×288pin
    Memory StandardIntel Core i9/i7 processors:
    Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
    Intel Core i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/ 2400/ 2133 MHz
    Maximum Memory Supported128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    PCI Express x12 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    Storage Devices
    SATA 6Gb/s 6 x SATA 6Gb/s
    M.22 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB)
    Intel Optane ReadyYes
    SATA RAID0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
    Audio Channels 2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Onboard LAN
    LAN ChipsetIntel 2.5GbE LAN chip
    Max LAN Speed10/100/1000/2500Mbps
    Wireless LANIntel Wi-Fi 6 AX201
    WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
    BluetoothBLUETOOTH 5.1
    Rear Panel Ports
    Back I/O Ports1 x USB Type-C port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    3 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (2T2R)
    1 x HDMI port
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    5 x audio jacks
    Internal I/O Connectors
    Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x front panel header
    1 x front panel audio header
    2 x Thunderbolt add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    1 x Q-Flash Plus button
    Physical Spec
    Form FactorATX
    LED LightingRGB
    Dimensions (W x L)12.0" x 9.6"
    Power Pin1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connecto
    Features
    FeaturesMulti-Graphics Technology:
    Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

    I/O Controller:
