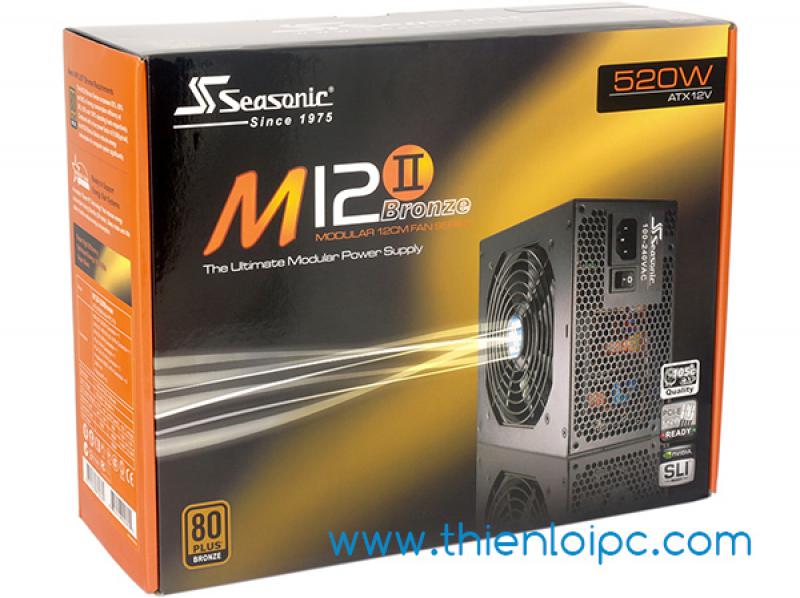

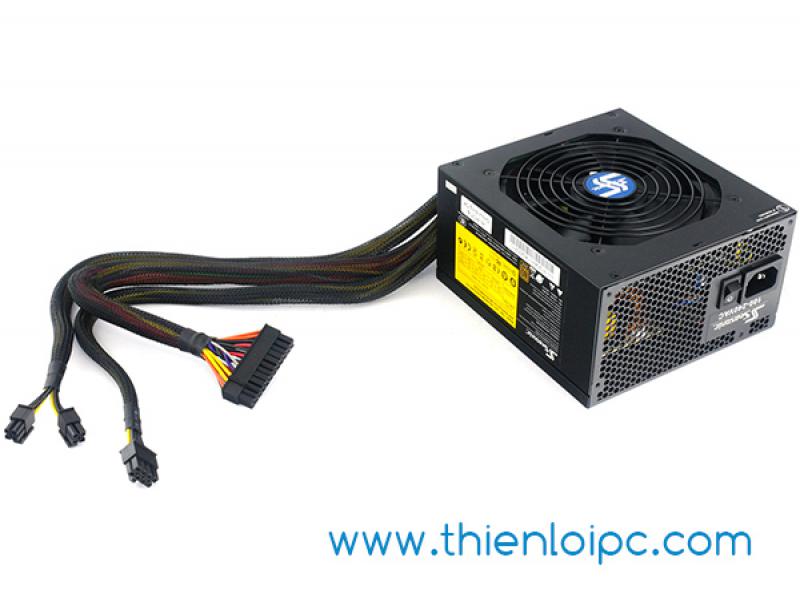

SeaSonic M12II 520 Bronze 520W ATX12V v2.3 / EPS 12V v2.91 SLI Ready 80 PLUS BRONZE Certified Modular Active PFC Power Supply

Hãng sản xuất:

Seasonic

Mã sản phẩm:

M12II 520 Bronze

Xuất xứ:

Bảo hành:

36 tháng

Kho hàng:

Sẵn hàng

Giá:

1.770.000 VNĐ
  Thêm vào giỏ hàng

Chi tiết sản phẩm

Model

Brand
SeaSonic
Model
M12II 520 Bronze

Spec

Type
ATX12V v2.3 / EPS 12V v2.91
Maximum Power
520W
Fans
1 x 120mm ball bearing cooling fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector
6
SLI
SLI Ready
Modular
Modular
Efficiency
up to 87%
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Output
+3.3V@24A, +5V@24A, +12V1@20A, +12V2@20A, -12V@0.8A, +5VSB@2.5A
Dimensions
5.91" x 6.5" x 3.39"

Features

Connectors
1 x Main connector (20+4Pin)
1 x 4+4 Pin ATX12V / EPS12V
1 x 8 Pin EPS12V
6 x Peripheral
6 x SATA
2 x Floppy
2 x PCI-E
Features
Super High Efficiency [up to 87%] - Green solution for reducing energy consumption, noise and heat.

Highly Reliable 105°C Japanese Brand Capacitors - Exceptionally reliable components extend product life.

Ample +12V Outputs - Enhanced +12V current capability broadens utilization possibilities.

Active Power Factor Correction [99% PF Typical] - Reduces line loss and power distortion.

Double Forward Converter Design - Advanced topology for high efficiency.

Smart & Silent Fan Control - Intelligent thermal control balances between noise and cooling.

12cm Ball Bearing Cooling Fan - Increases airflow & lifetime and reduces rotation speed & noises.

Soft-Mount Rubber Cushions - Reduce fan rotation and vibration noise.

Universal Video Card Support - Supports new PCI-E video card technologies.

All-in-One DC Cabling Design - Supports PC, IPC, workstation and server systems.

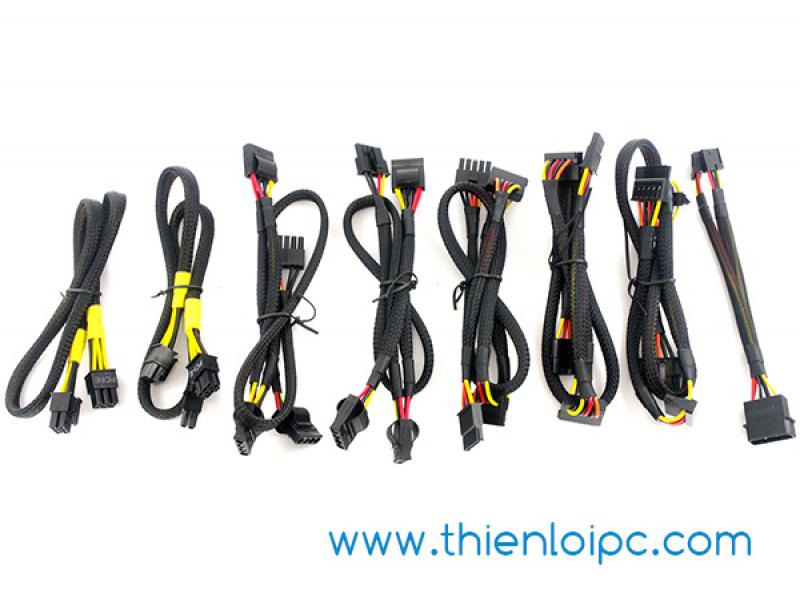

Detachable Modular Cables - Flexible cable solution to reduce clutter.

Patented Easy Swap Connectors - Unplug the connectors easily, quickly and safely.

Universal AC Input [Full Range] - Plug and run safely anywhere around the world.

Ultra Ventilation [Honeycomb Structure] - Minimizes airflow resistance for maximum cooling.

Over Voltage / Over Power / Short Circuit Protection - Total protection for your power supply, your system and yourself
